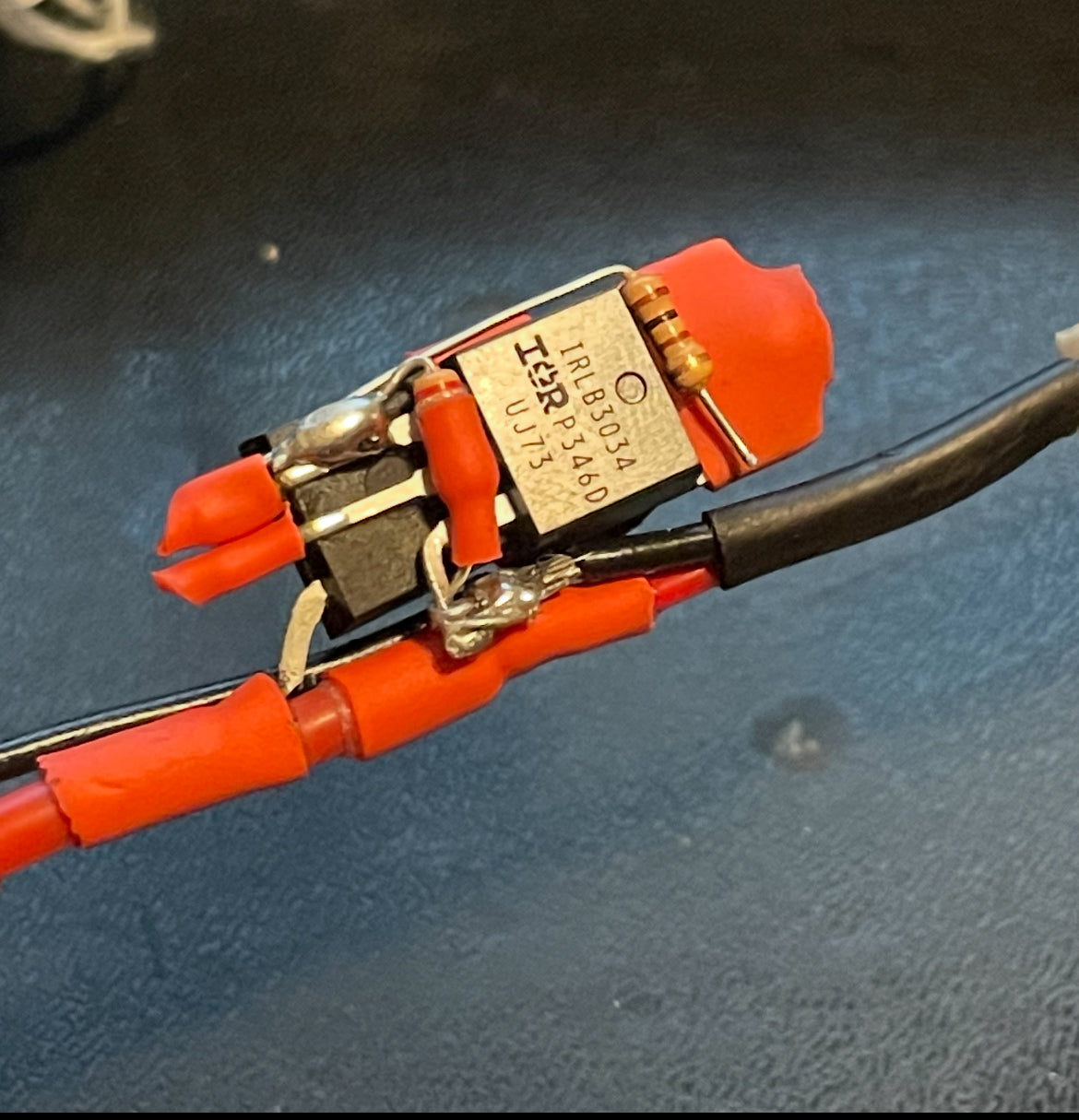

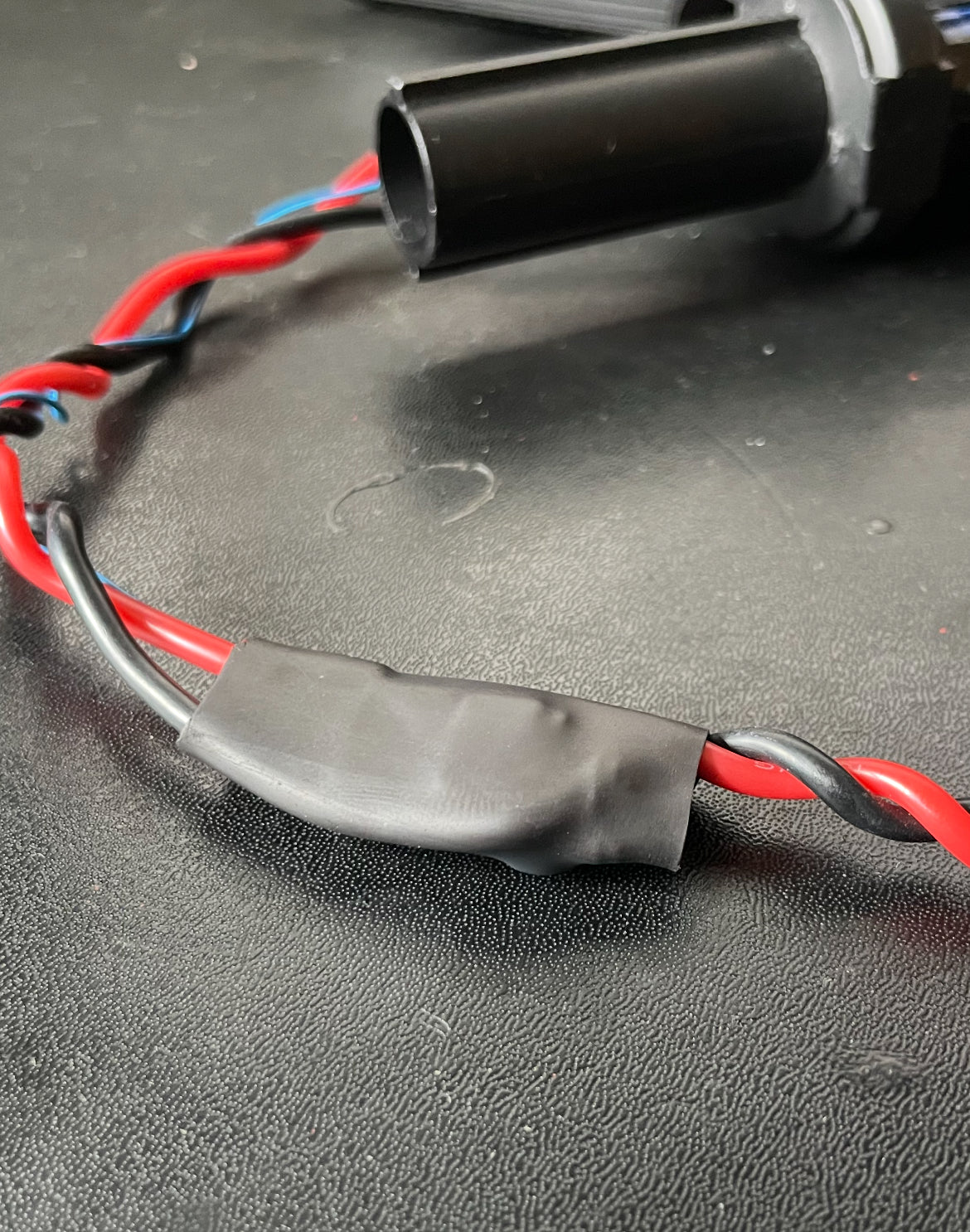

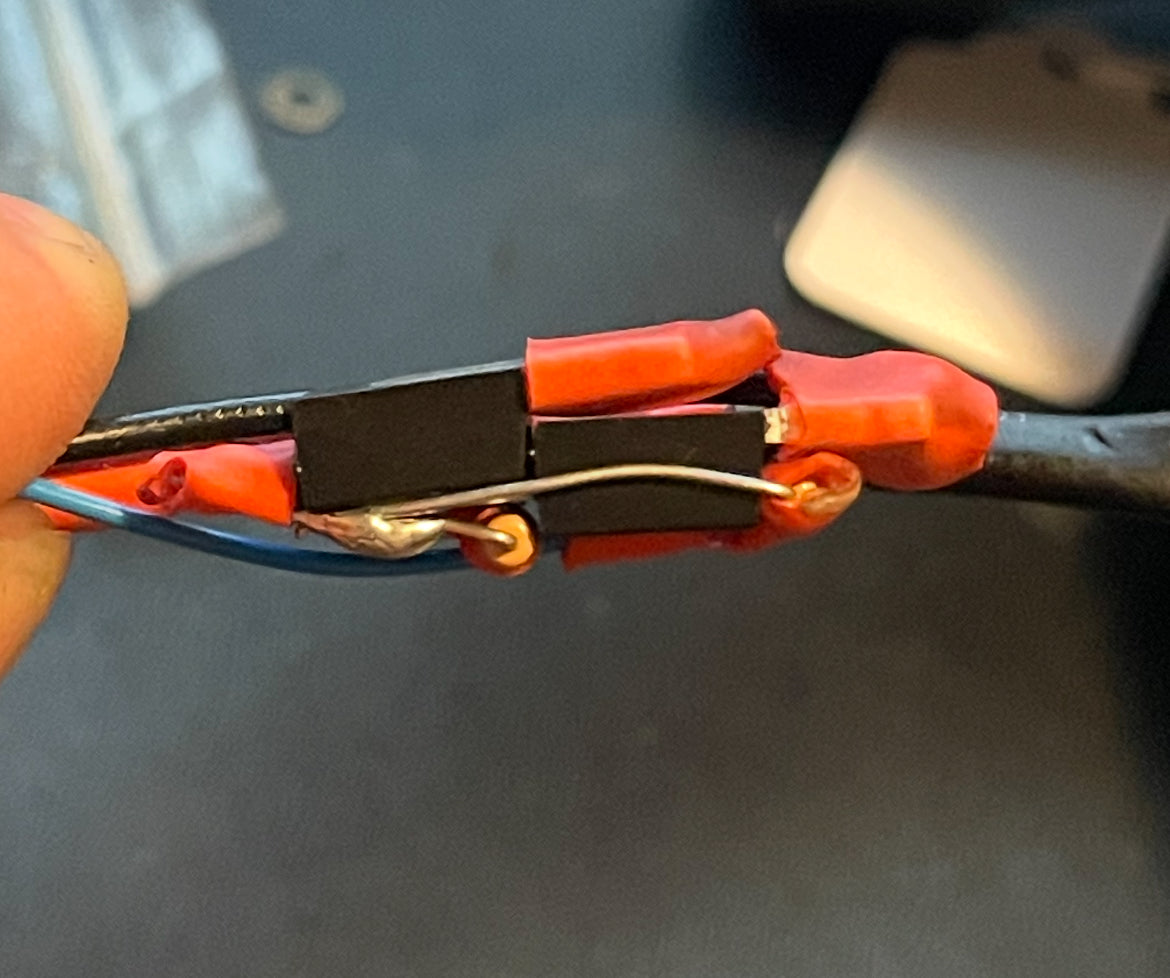

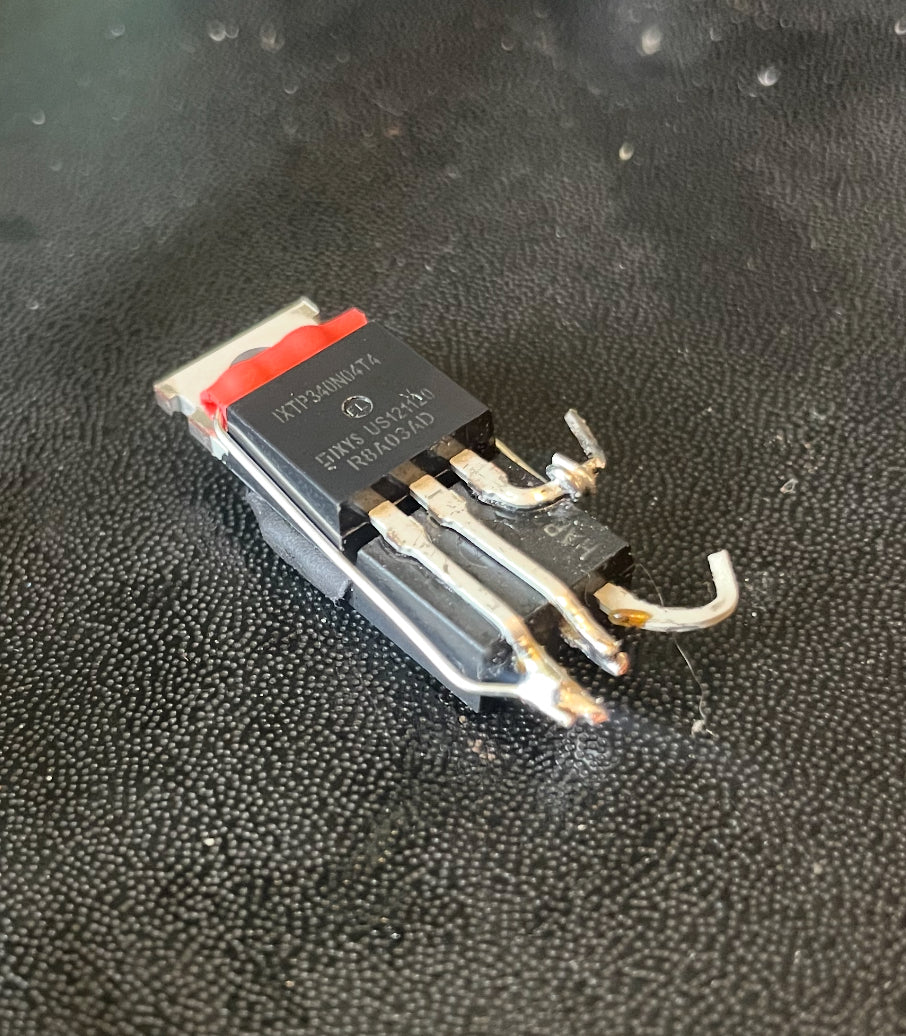

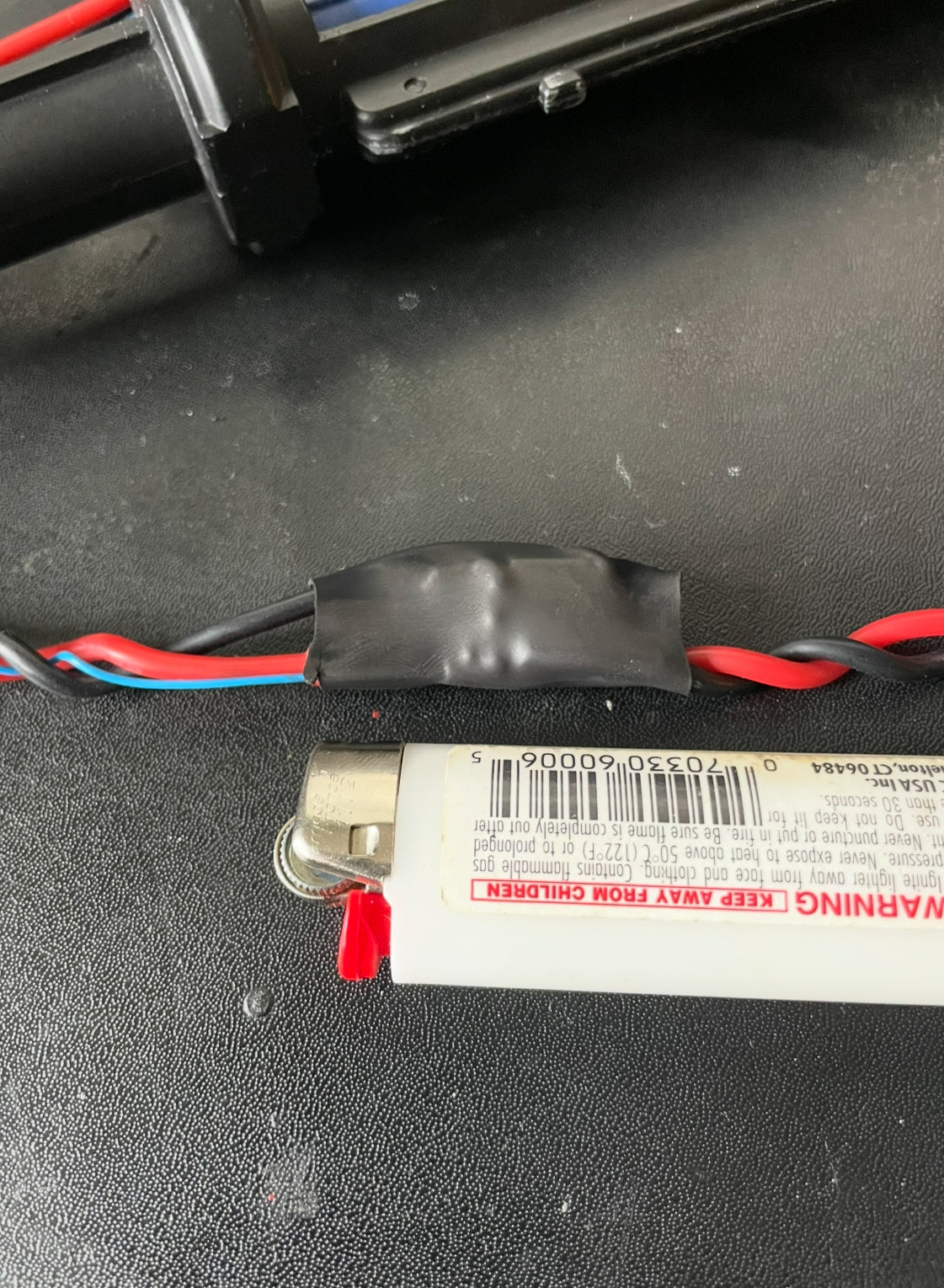

Inline Active Braking Mosfet

Extremely versatile and highly durable Mosfet unit for All non-brushless AEG systems. AB set at 40%.

Mosfets for AEG systems provide protection for the trigger contacts and fragile electronic components, rerouting current away from them and acting as a controller for your motor. It prolongs the life of your AEG system and allows safe use of 11.1v lipo batteries.

Active Braking applies a reverse current to the motor after trigger release. This results in a consistent and stabilized gearbox cycle which resets the piston after each shot in semi. AB is also necessary to stabilize high speed builds using standard cutoff lever and trigger contacts.

Handmade in USA. I have been hand building MOSFETs for my repairs on airsoft rifles for over ten years. Be sure your electronic upgrade components are as high grade as the rest of your pro build. No mass production and quality control issues here, each unit is hand made and tested before shipping.

Rated for up to 14.8v batteries and 200,000+ trigger pulls.

1yr warranty when installed by Airwerx. Install at your own risk.

Includes Deans connectors, wire leads to connect to your old harness, plus 18” signal wire.

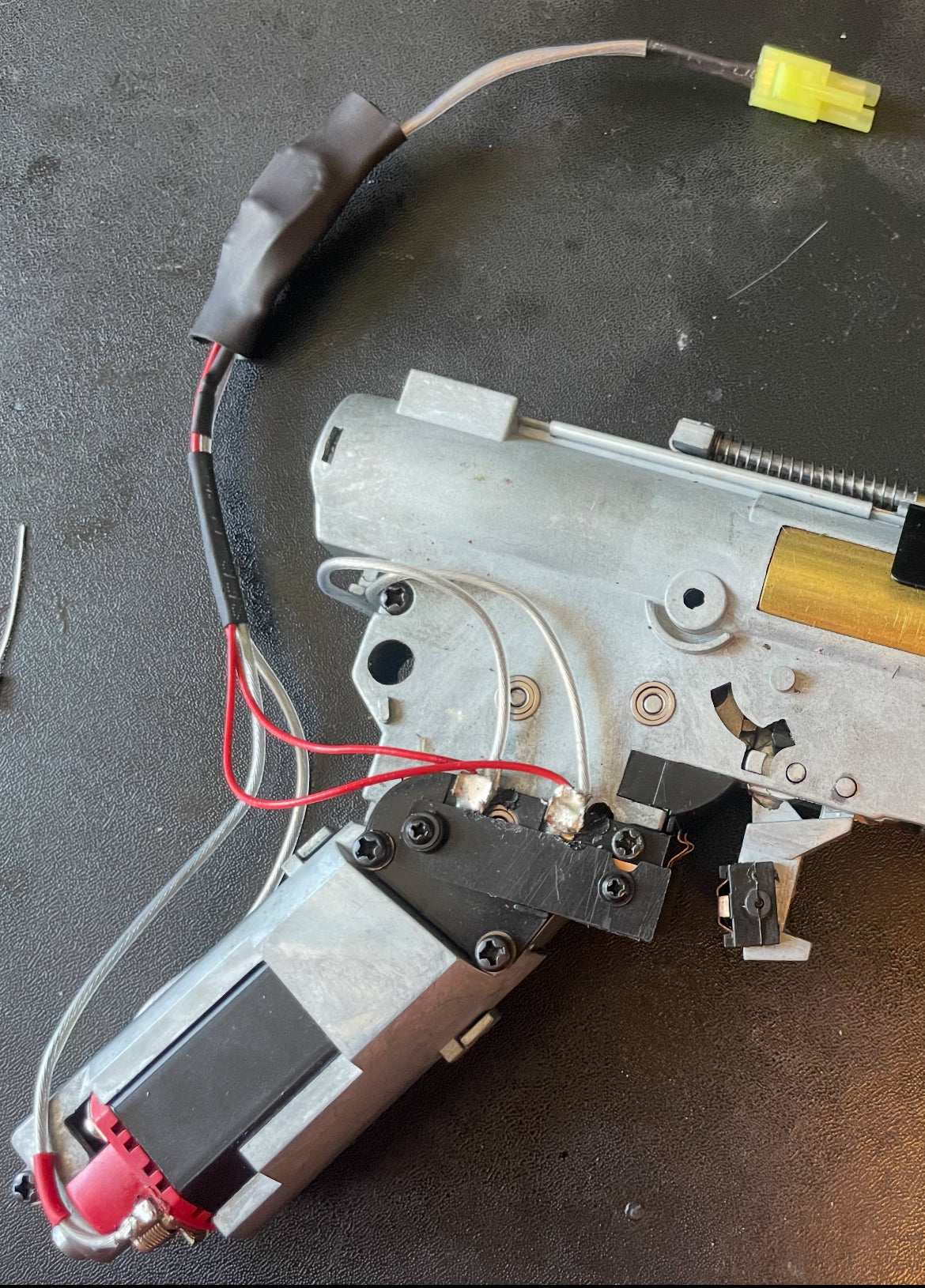

Requires opening gearbox, connecting to your harness and rewiring trigger contacts. Consult a professional technician before attempting yourself.

Manual:
