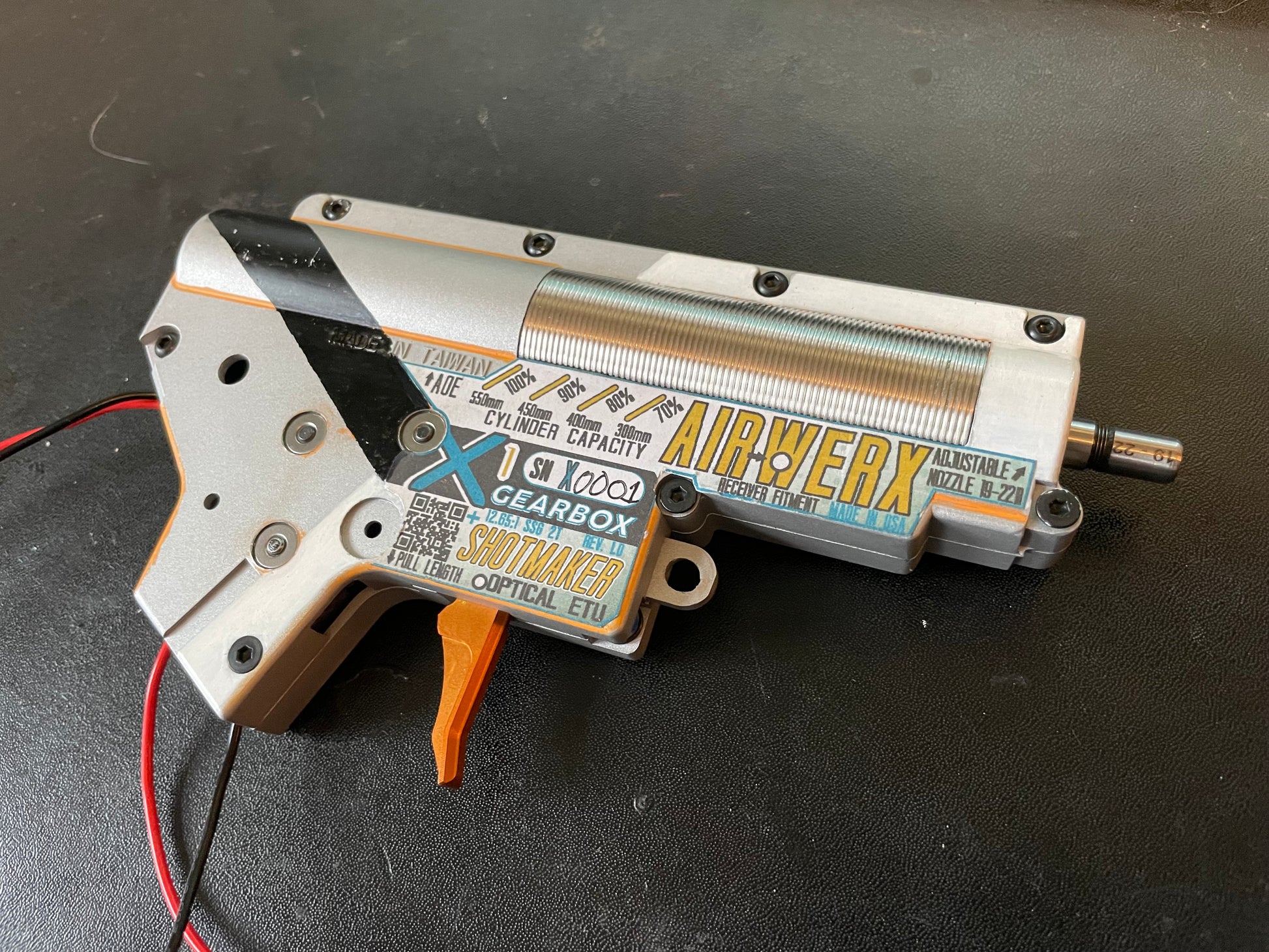

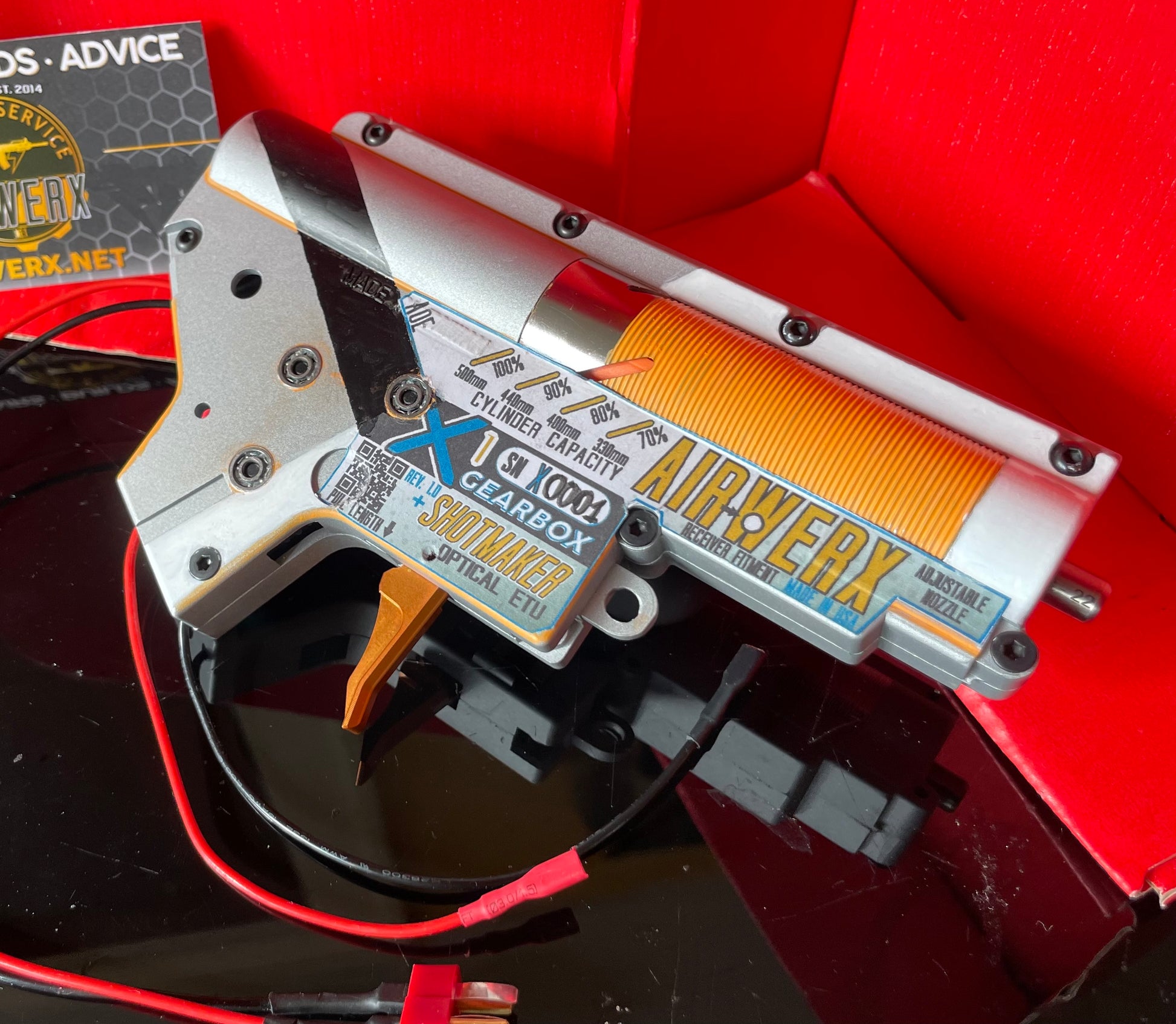

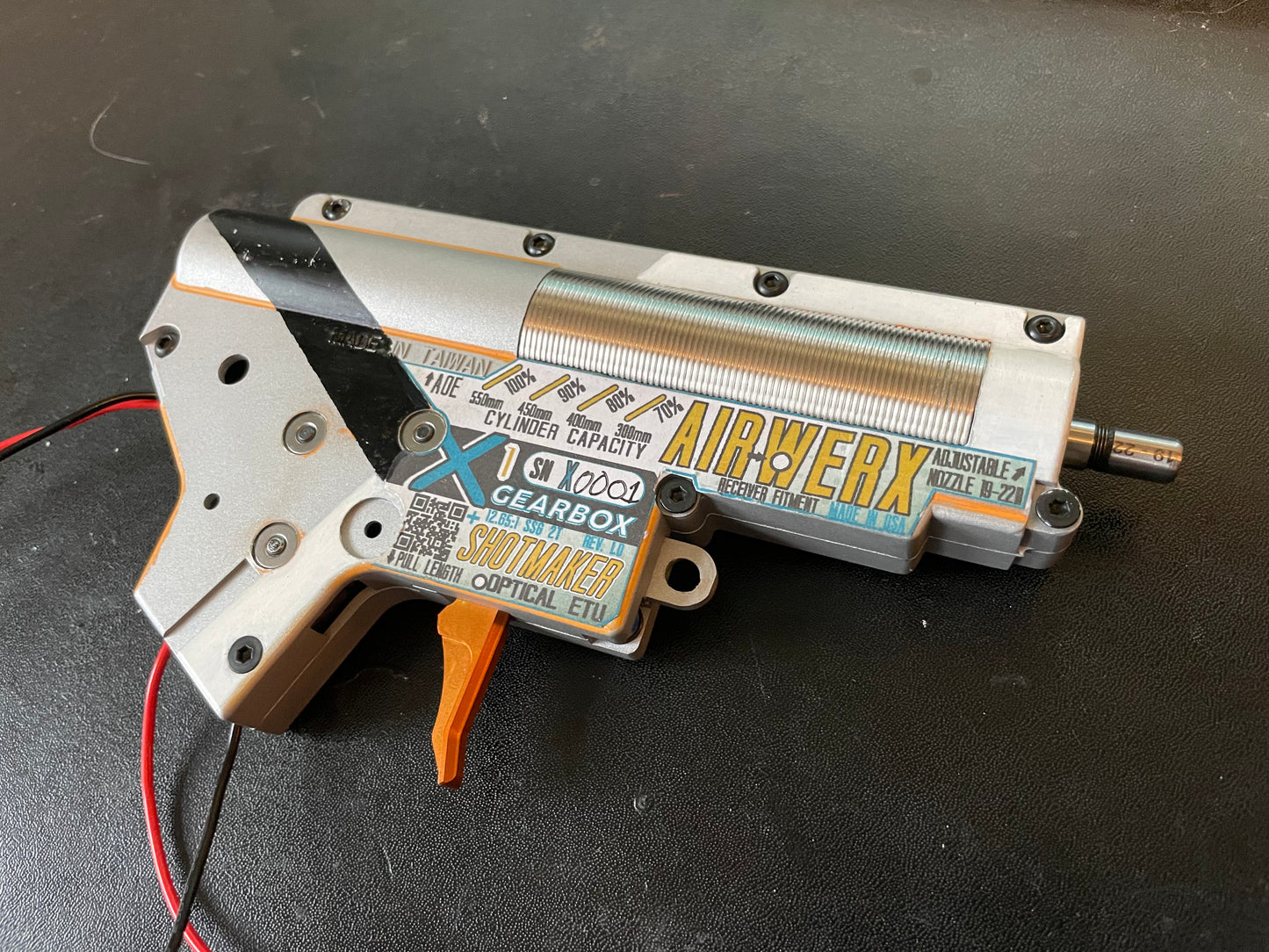

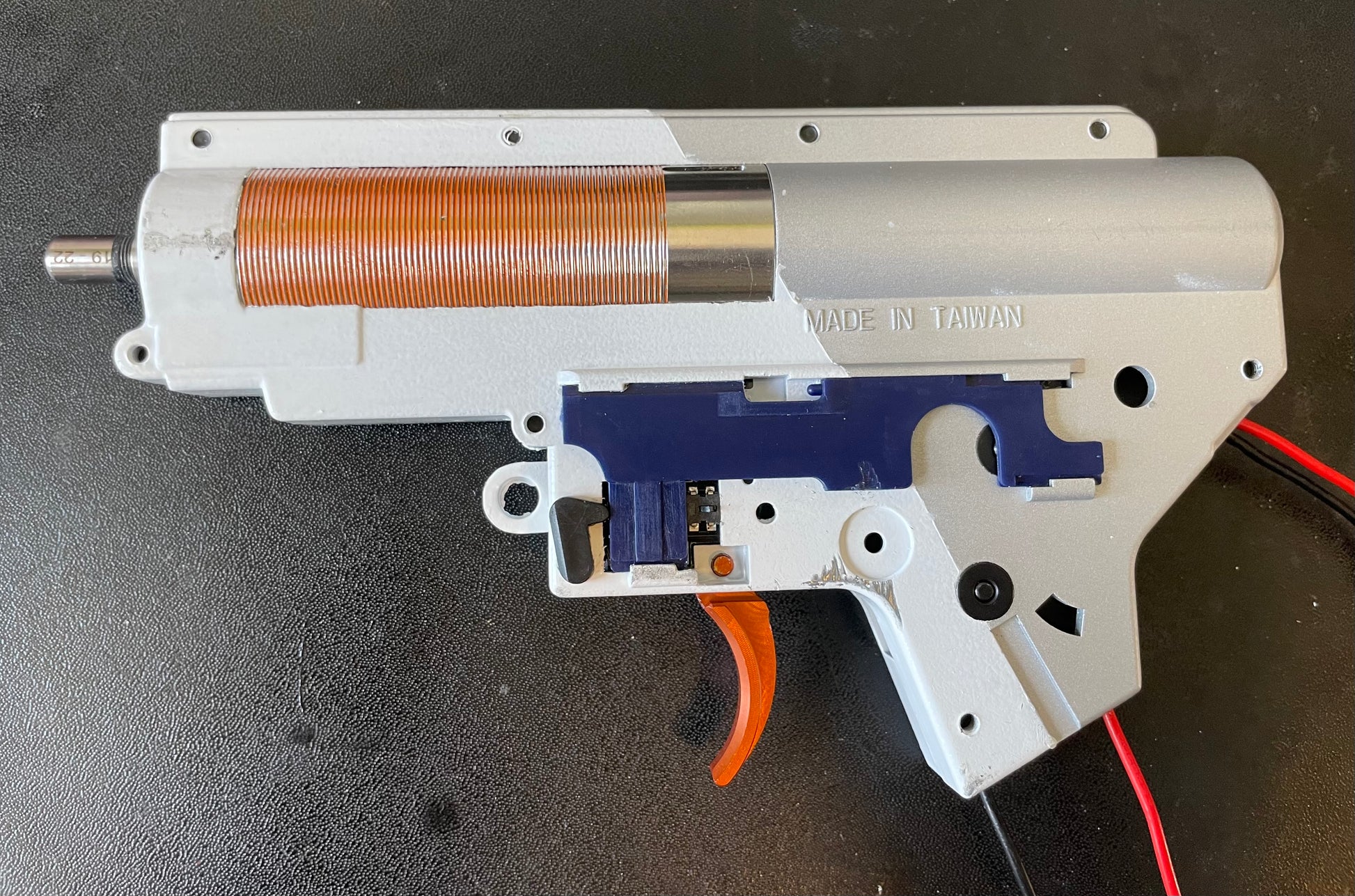

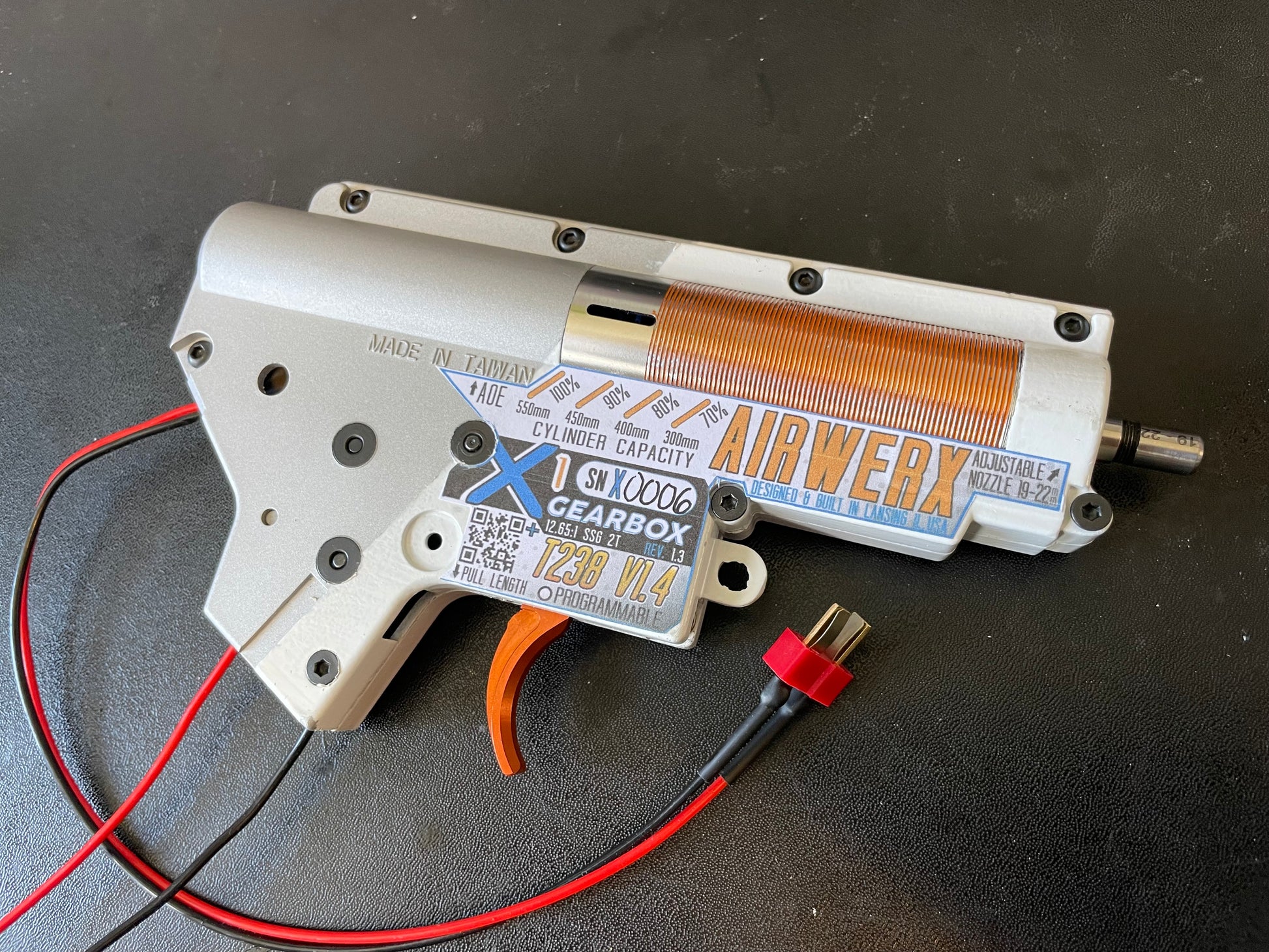

12:1 SSG Gearbox prebuilt by Airwerx.
final rev. 1.3 release edition
These next gen gearboxes are working prototypes part of my beta testing program. They come with a battle-tested parts system and 2 year warranty.
Some of the features include:
35rps, 45~ms response w/ 37k brushless motor
Adjustable trigger pull .5-10mm
Adjustable nozzle length 19-22mm
Adjustable FPS 310-400
Binary & Semi Lock Capabilities
Brushless motor ready ✅

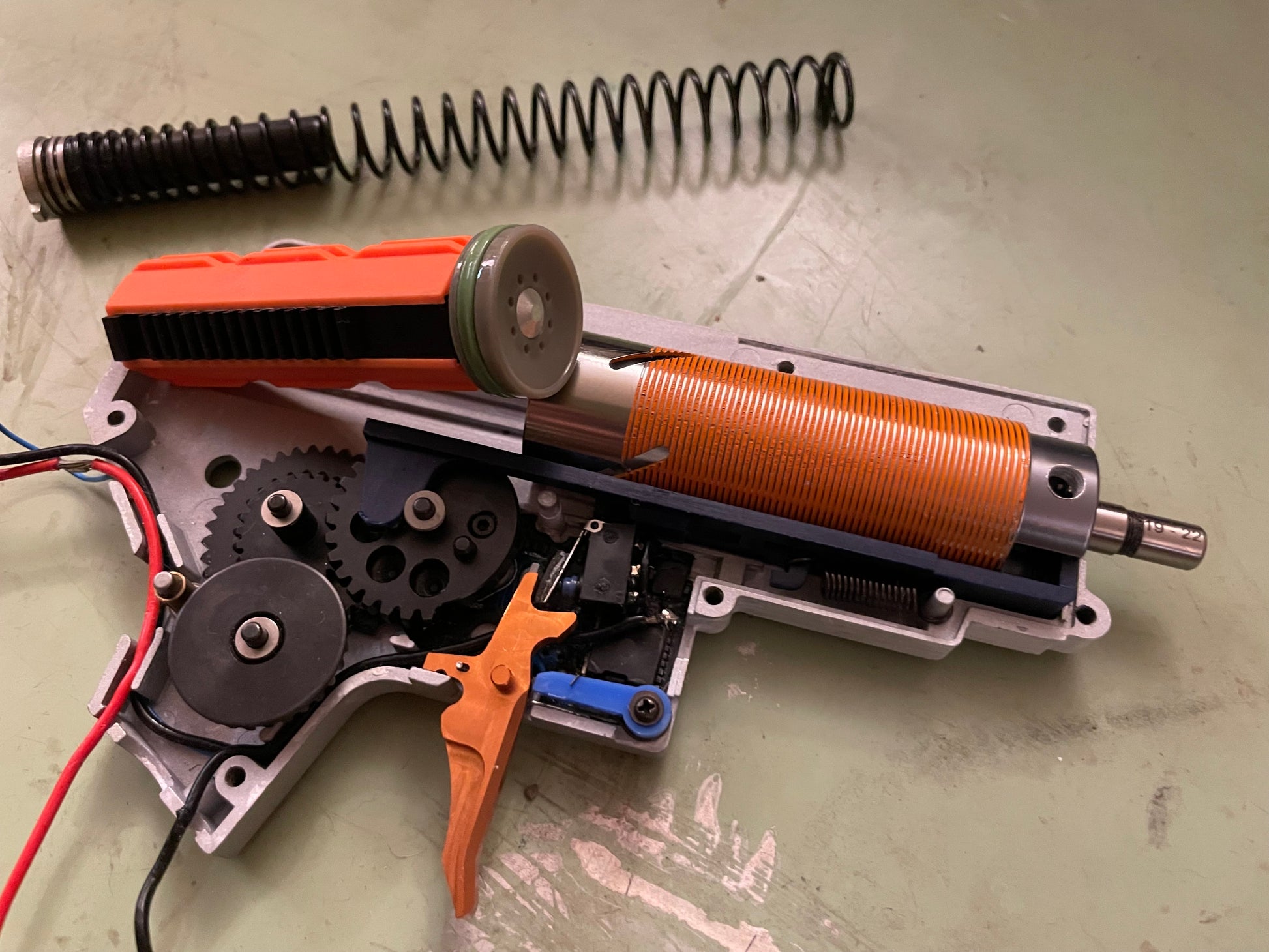

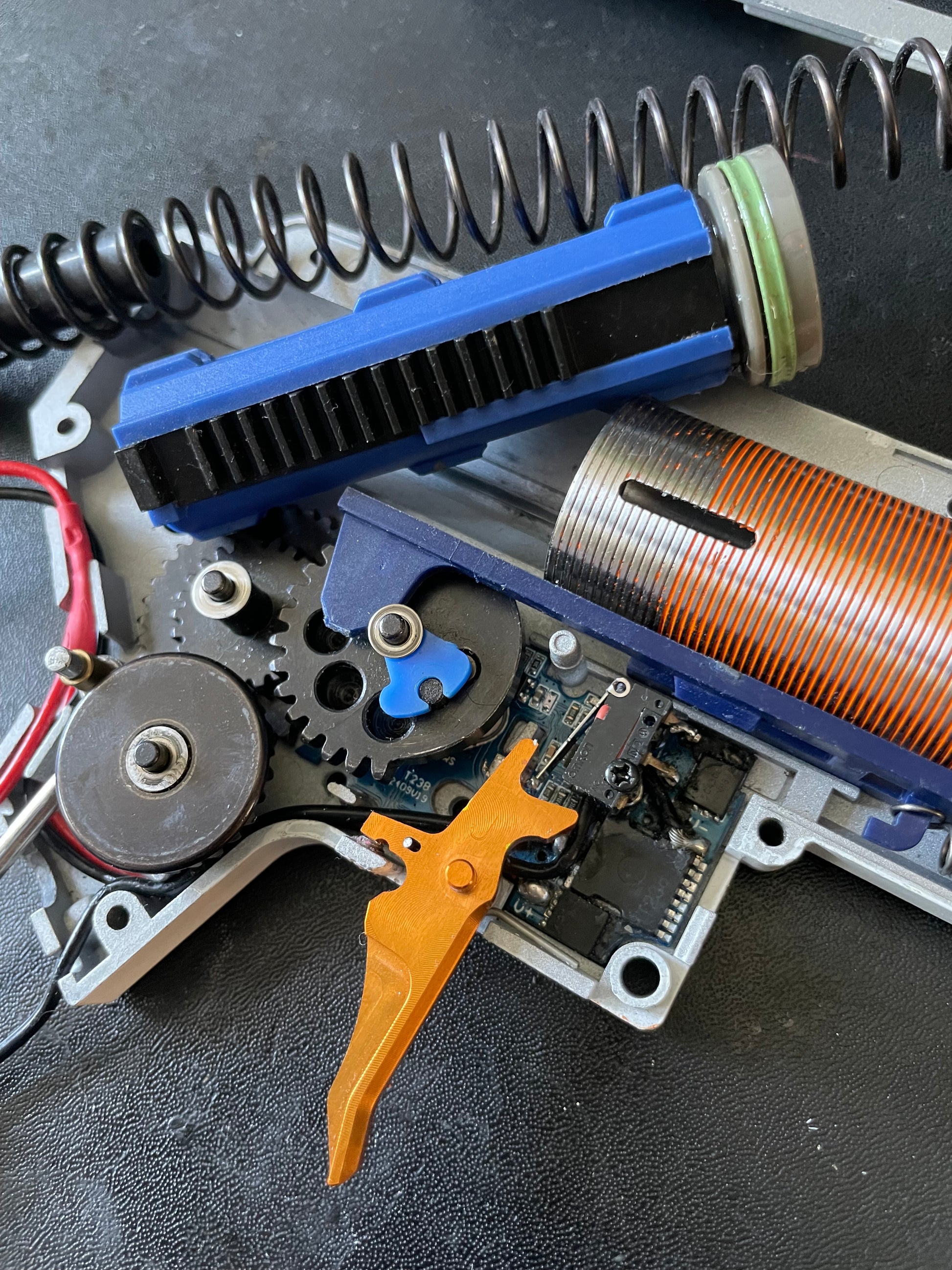

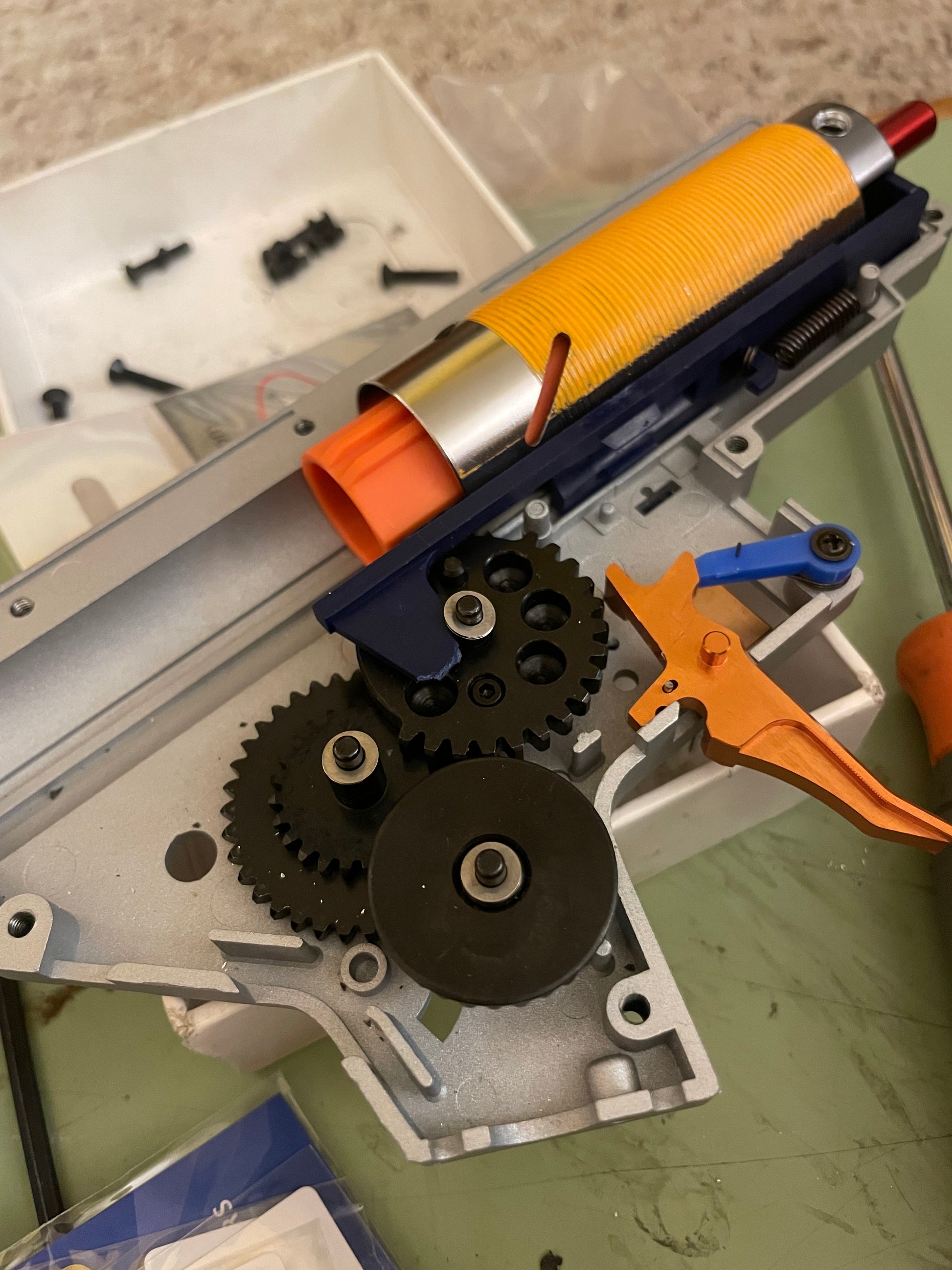

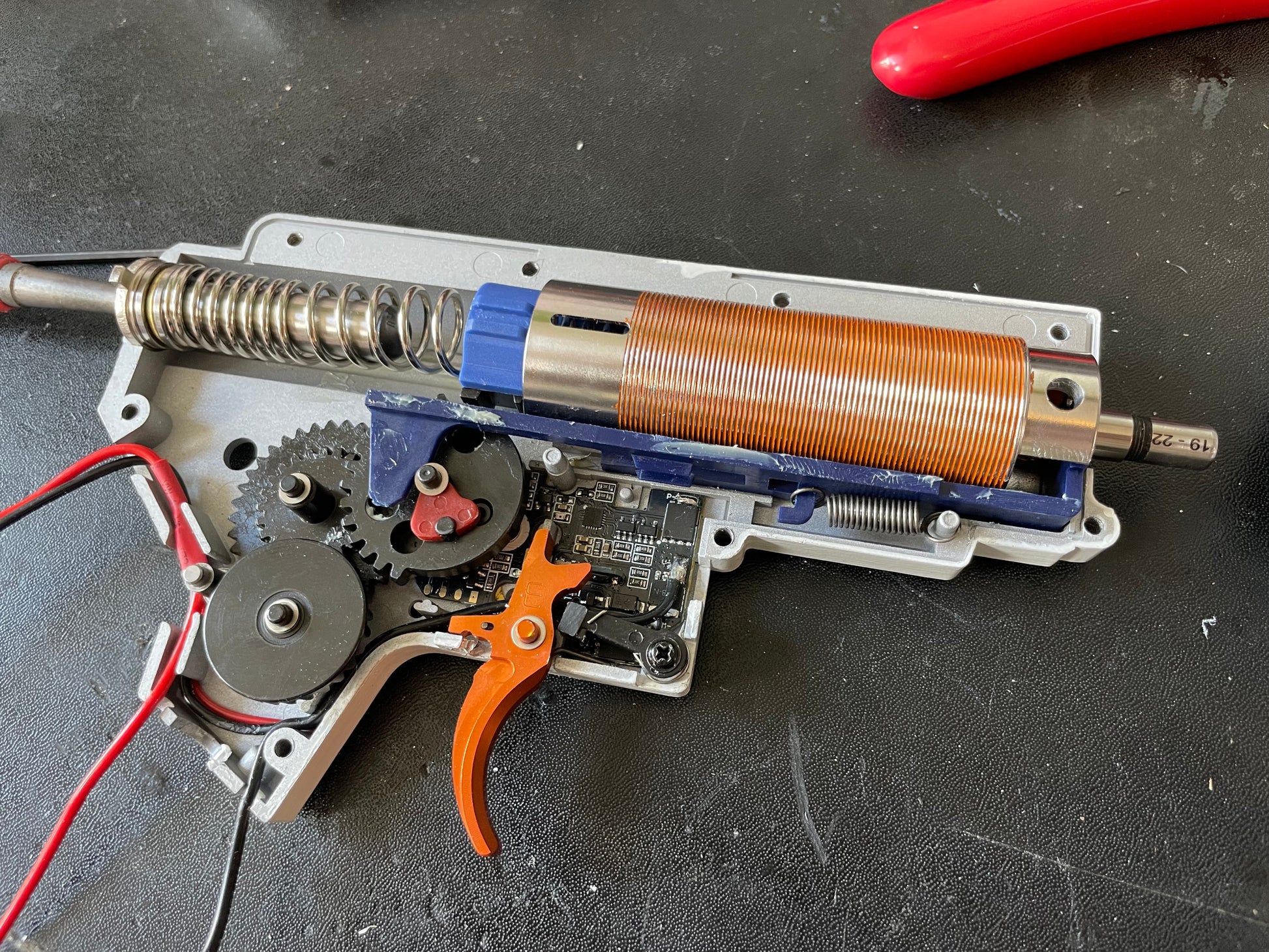

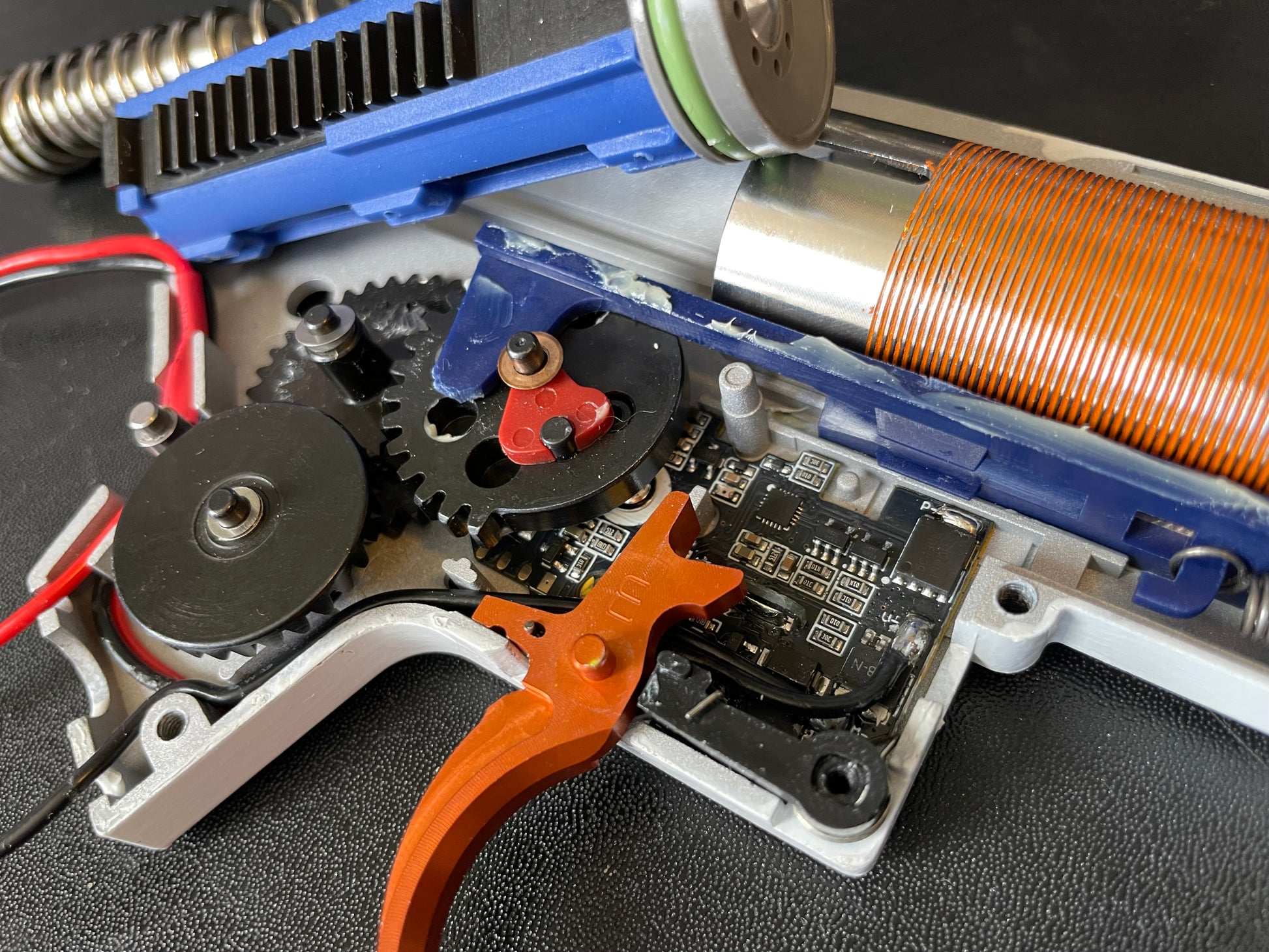

Build list:

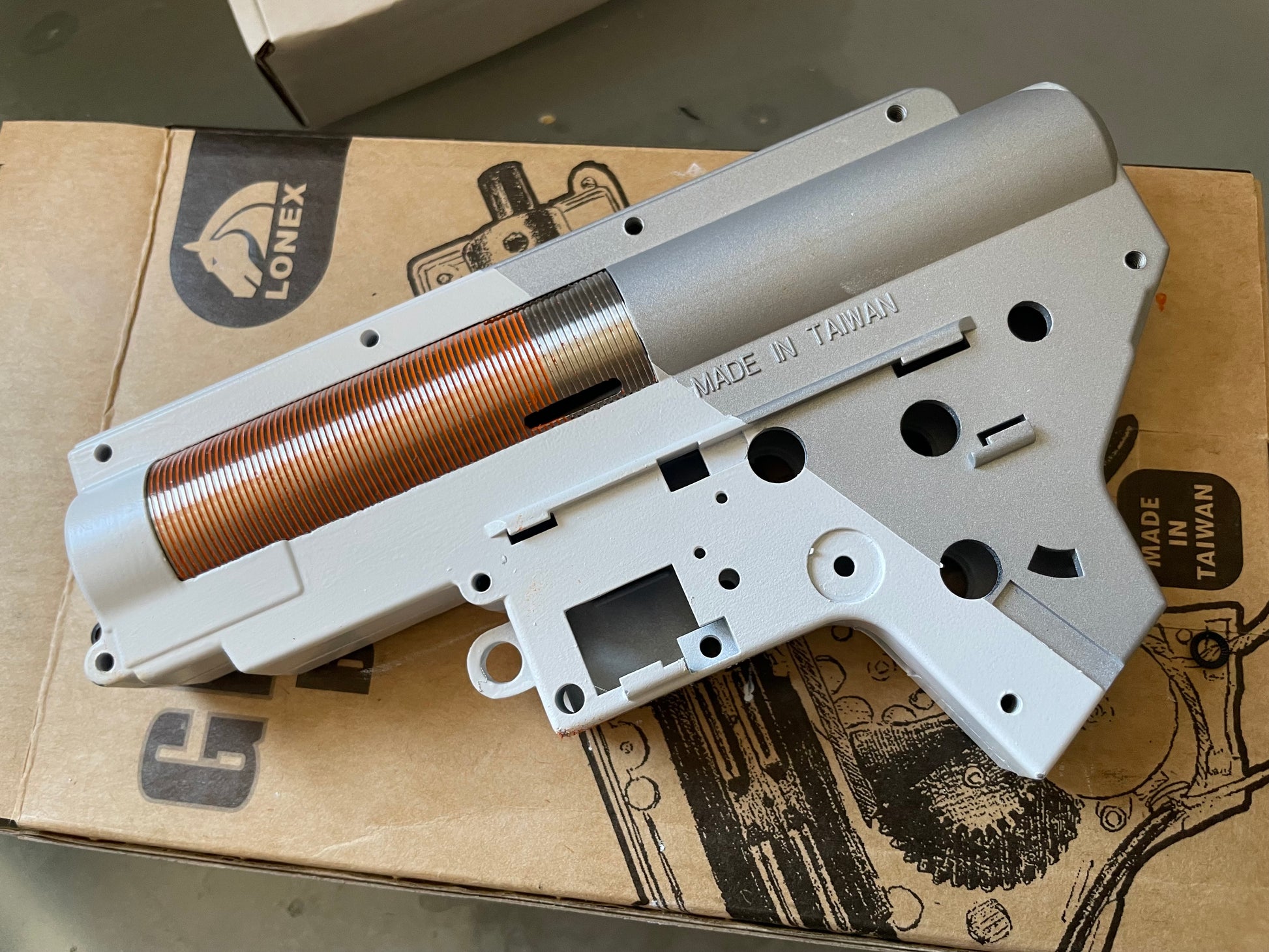

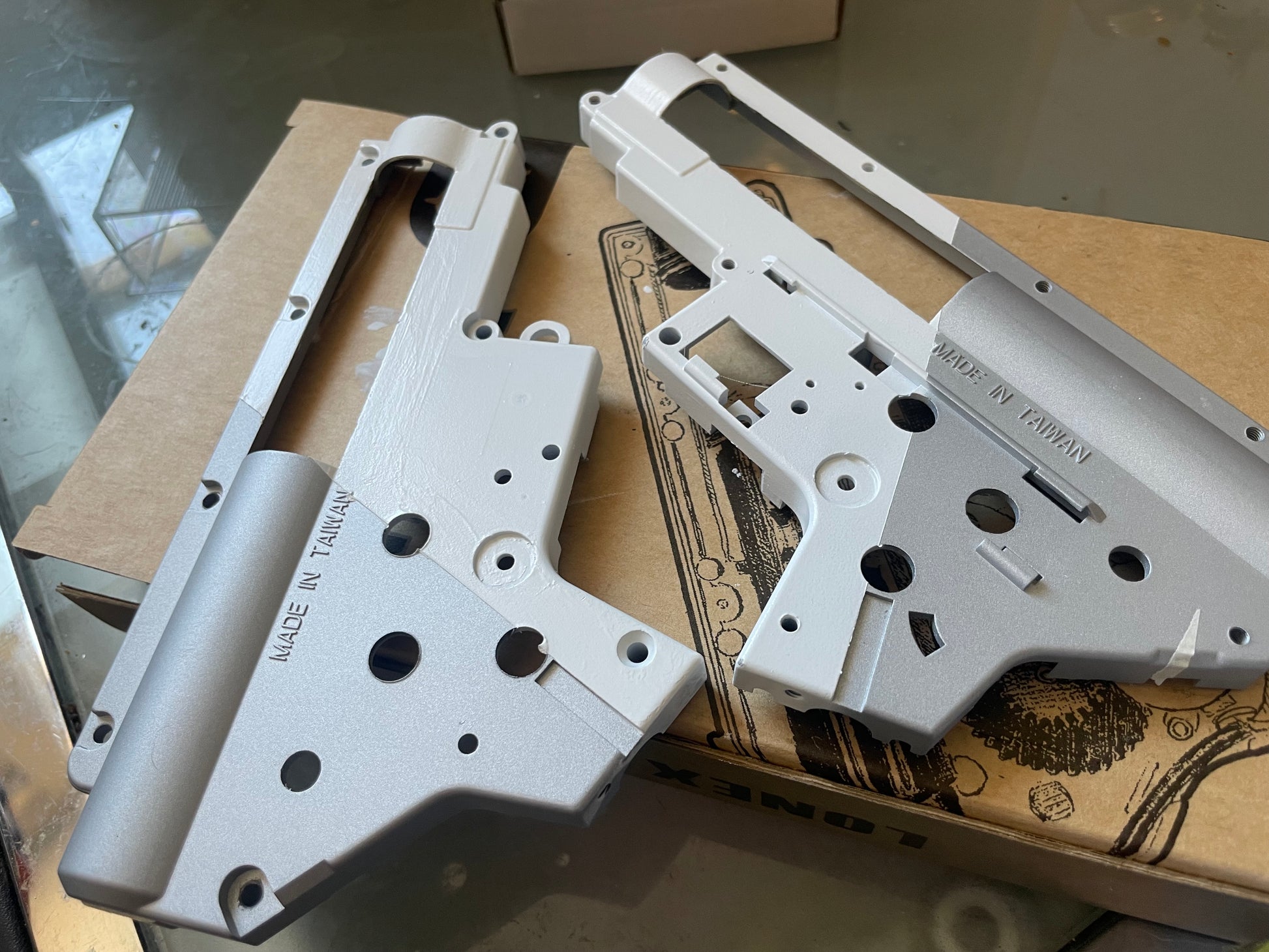

Lonex 8mm Gearbox shell
FPS 8mm Self-Lubricating Steel Bushings

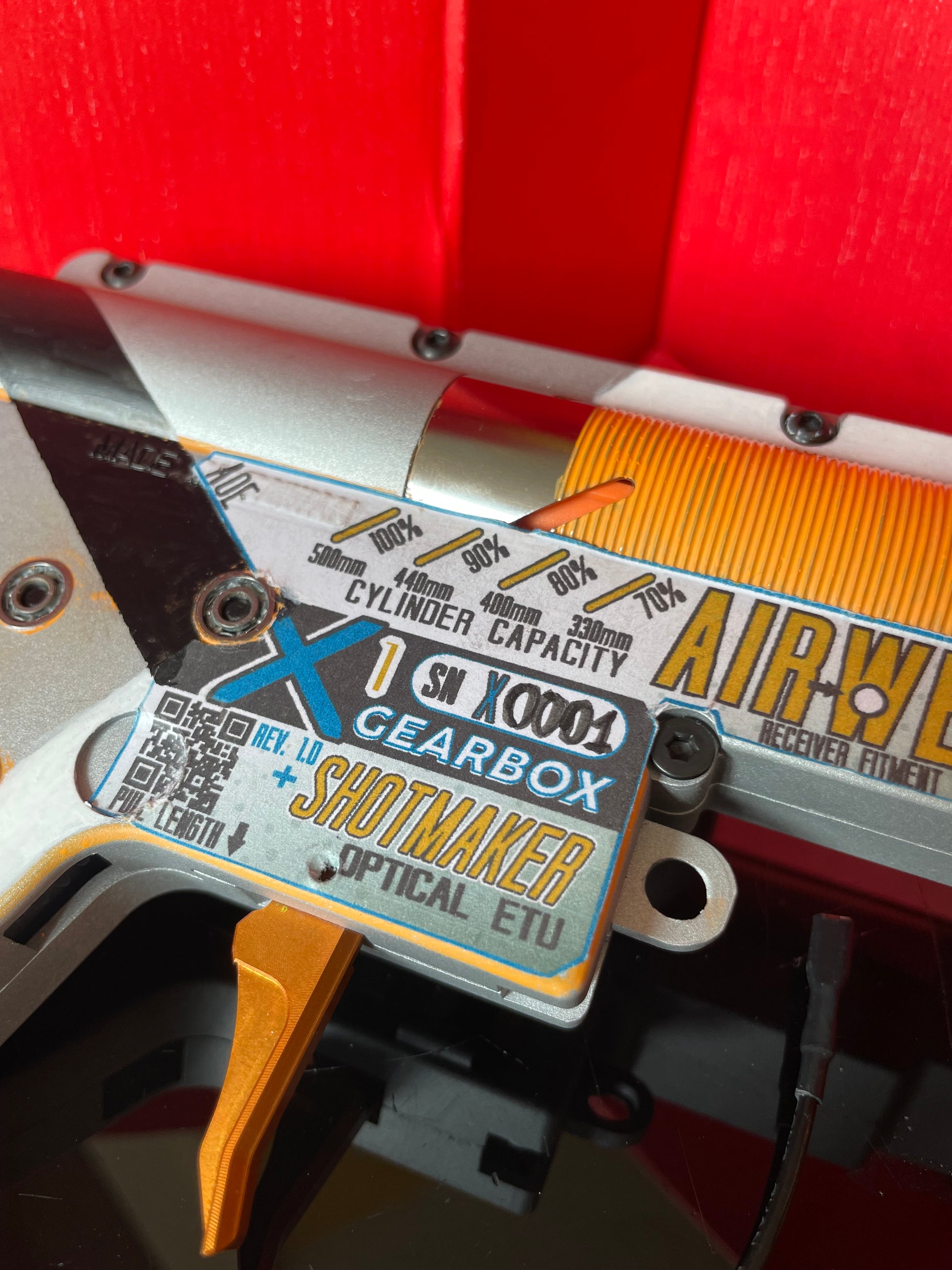

AWX Shotmaker ETU (binary capable) *

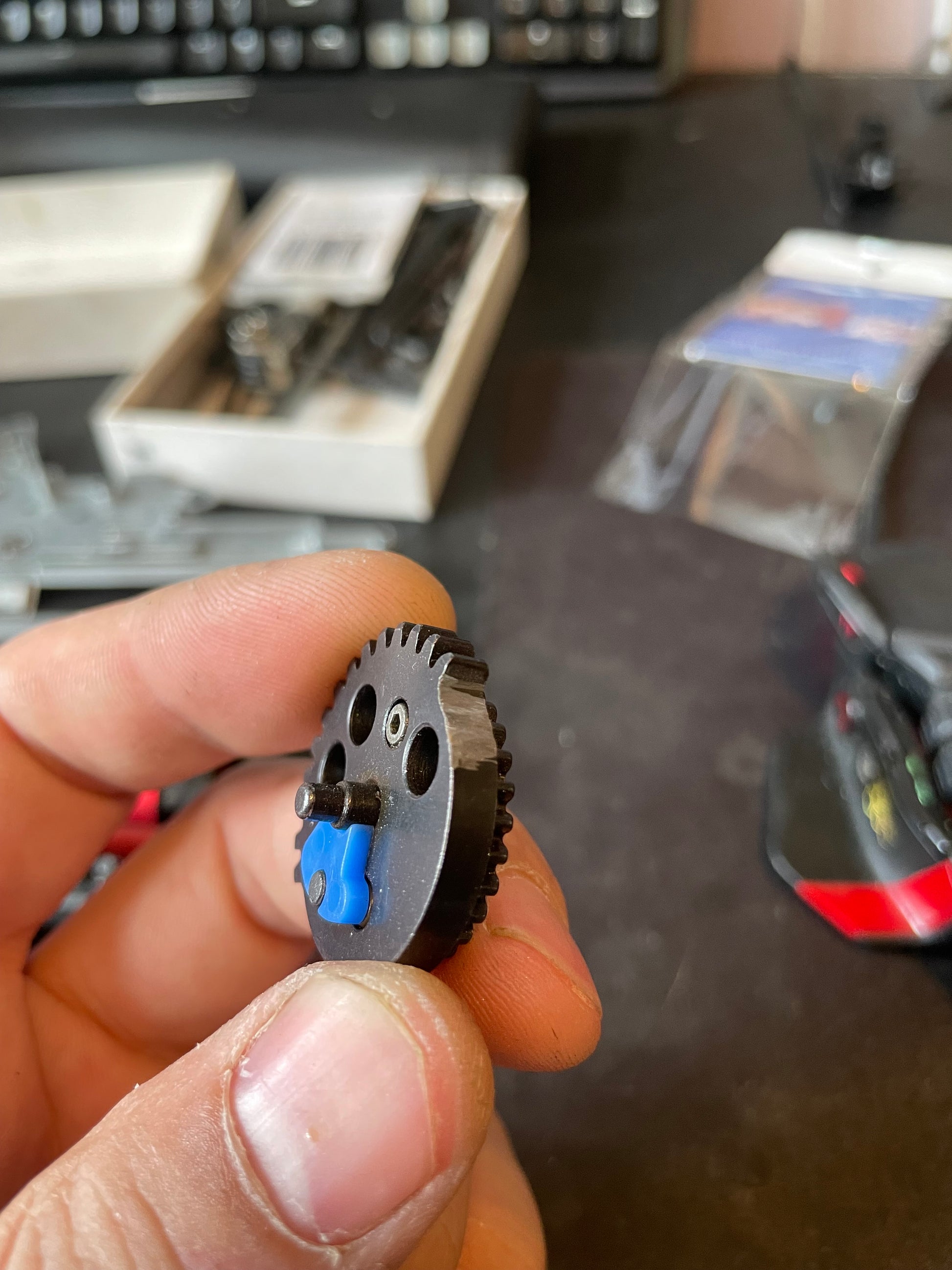

SHS 12:1 CNC Steel gearset short stroked 2t

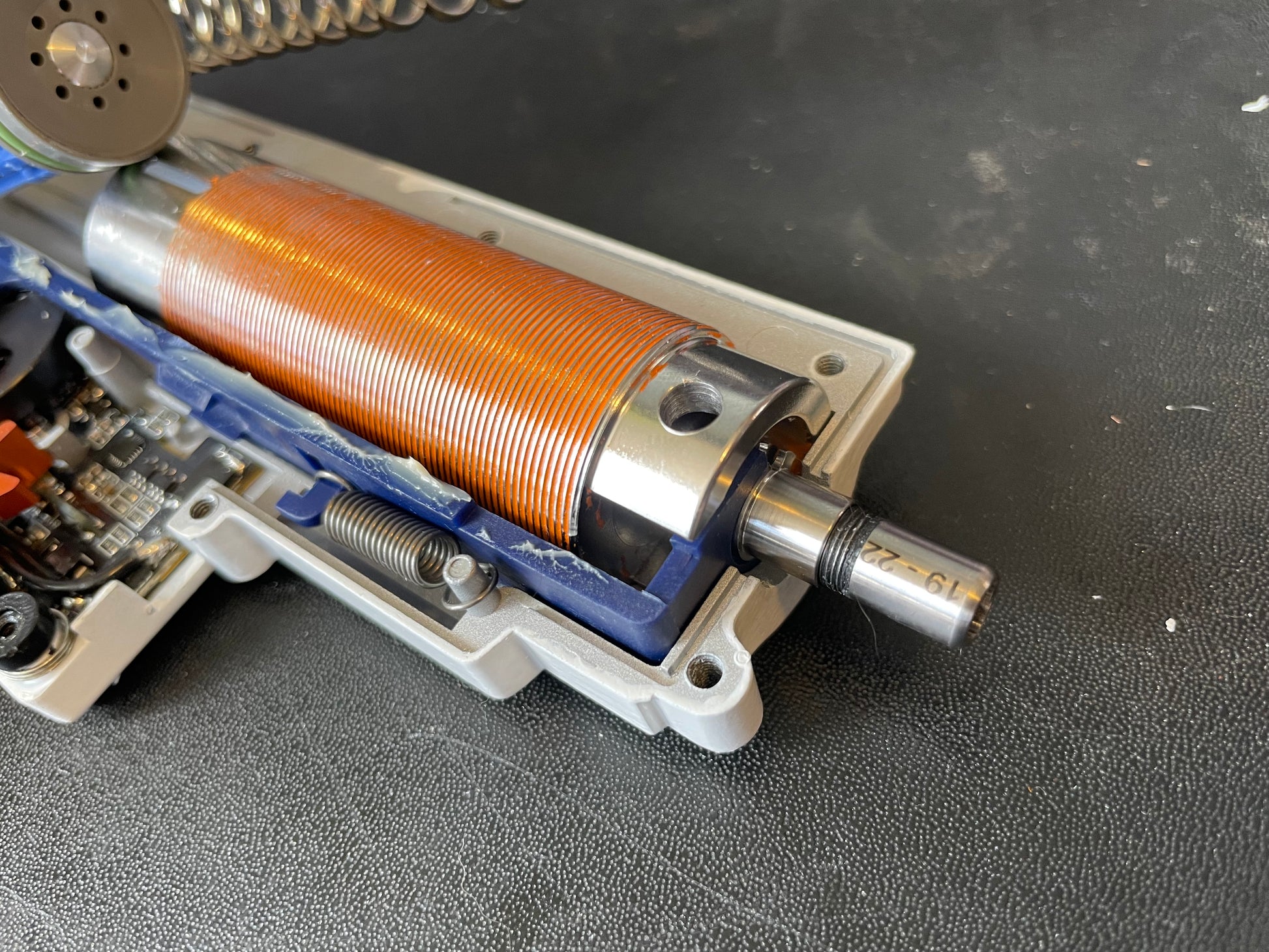

Maxx CNC steel adjustable nozzle 19-22mm

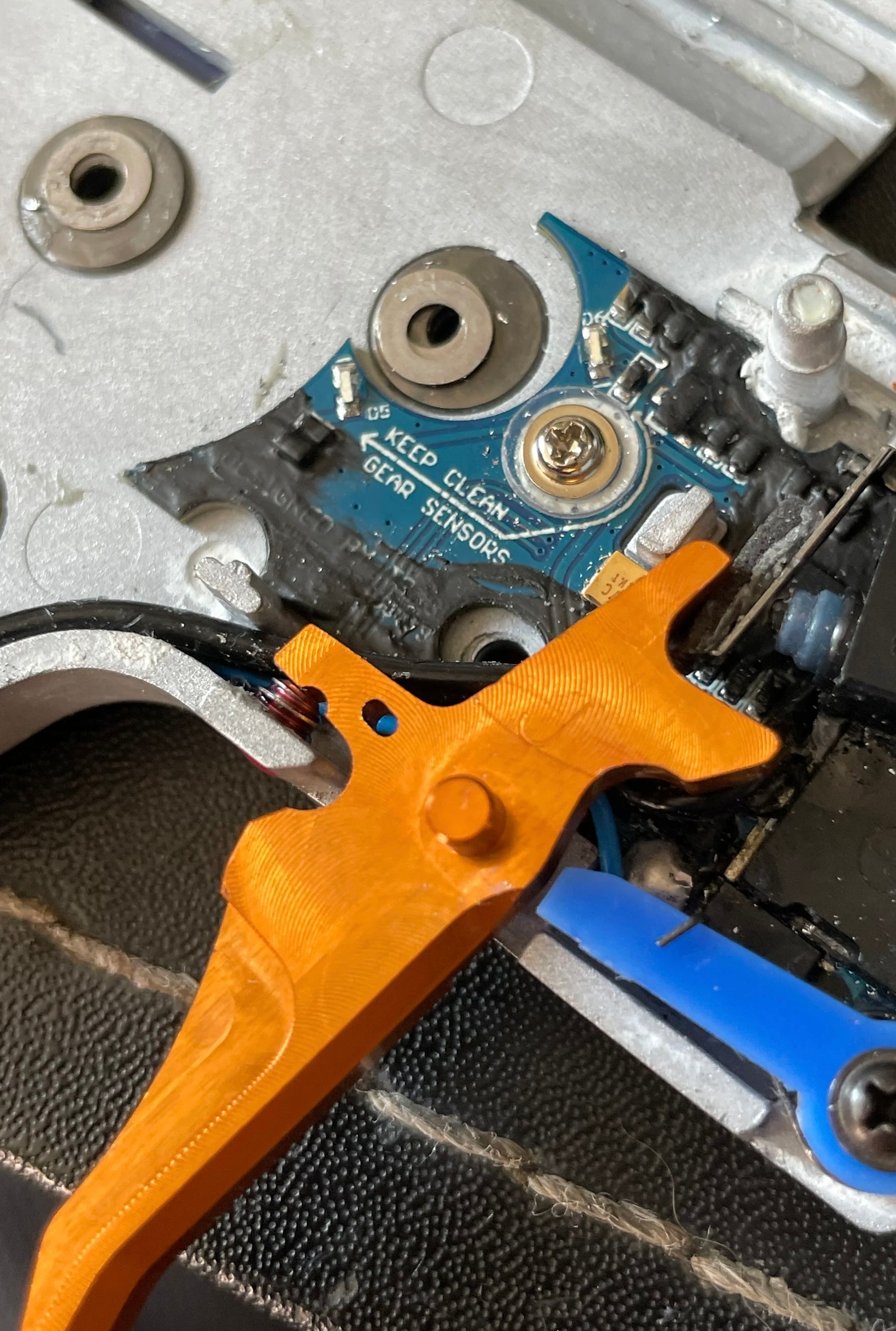

Retro Arms CNC straight trigger type J
AWX Steel 80% ported polished cylinder
FPS Softair X-ring Technopolymer low-noise Piston Head
40CR Steel Rack Nylon-Reinforced SoLink Piston
AWX High performance 6063 Aluminum cylinder head + high impact 40D pad
Lonex Pom high performance tappet
SHS M130 Spring
ZCI Stainless Bearing Spring Guide
2yr Warranty
This gearbox will drop into most Tokyo Marui spec V2 AEGs with nozzle length 19-22mm.
This unit is Not compatible with KWA Next-gen ERGs.
*Available with aftermarket ETUs by request
